FOX 10
U/C & R/C
Item numbers
12600 - 22600
This is not complete and under construction.

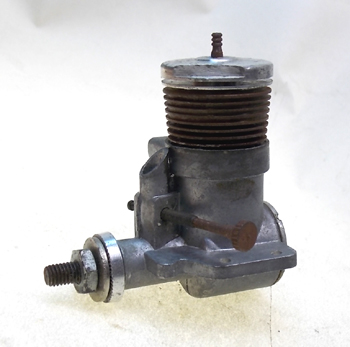

  FOX 10


Anybody have
3 view or exploded view drawings of this engine?

Specifications
displacement
.10 cu in
power
rpm
bore stroke
weight
porting
bearing Aluminum
piston/cylinder Lapped
cylinder Steel
crankshaft thread 10-32


Manuals
Note: These are archive copies of the originals

10 UC

Replacement Parts
This is not complete and under construction. If no part number link, we may not have the part.

spare parts
crankcase stunt
rear cover
piston/cyl
connecting rod
wrist pin
crankshaft
crankshaft reverse
cylinder head
rear cover
Screw set
Gasket set
prop driver
prop washer
prop nut
set of gaskets
screw set
screw and gasket set
needle
needle spring
carburetor barrel
exhaust baffle
exhaust baffle wire
exhaust baffle snap ring
