FOX 15x
U/C & R/C
Item numbers
12600 - 22600
6-23-2023

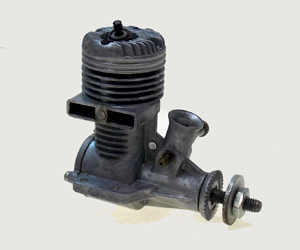

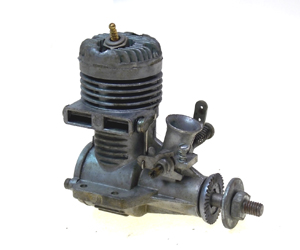

  FOX 15x R/C & U/C

Anybody have
3 view or exploded view drawings of this engine?

Specifications
displacement
.15 cu in
power
rpm
bore stroke
.590" x .540"
weight
4 1/2 oz
porting
loop
bearing
bronze bushing
piston/cylinder
iron/steel lapped
cylinder
steel
crankshaft thread
10x32

Accessory Items


prop
9x5

Manuals
Note: These are archive copies of the originals, prices and contact information is not be correct.

MAY 1970 15 R/C Manual

15x UC

Replacement Parts
This is not complete and under construction.

Search for availability and pricing here
If no item is found we may have not located it in our inventory yet.

View items in your cart

spare parts
First PN's
Old Part No.
New Part No.
crankcase r/c
21501
21501
crankcase stunt
1501
11501
11501
rear cover
1511
11511
21f-1511
piston/cyl
1504
11505
33f-1505
connecting rod
1507
16f-1507
wrist pin
1506
15f-1505
crankshaft
1508
11508
17f-1508
crankshaft reverse
11528
cylinder head
1502
11502
11f-1502

Screw set
1514
11514
25f-1514
Gasket set
Rear Cover Gasket
29f-1521
prop driver
1509
11509
20f-1509
prop washer
1513
11513
23f-1513
prop nut
1512
11512
24f-1512
U/C Needle & Spring
85f-1516
screw and gasket set
1514x
needle
716
needle spring
717
carburetor barrel
exhaust baffle
1520x
