Fox 29 & 36 R/C & U/C

FOX MODEL MOTORS
MECOA - Fox Mfg
16015 Adelante St
Irwindale, CA 91702 U.S.A.

FOX 29 & 36
R/C & U/C

5-19-2023

FOX 29 & 36

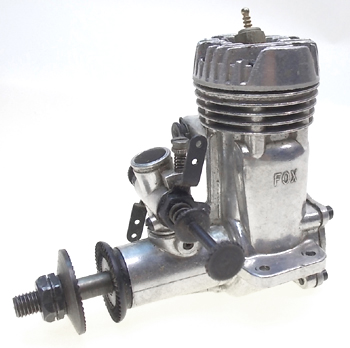

R/C version shown

29's are usually stamped "29" on the top of the mounting lug.

Specifications

displacement	.29 - .36
weight	8 oz
porting	Loop
bearing	bronze
piston/cylinder	iron/steel
glow plug	K&B 7311
crankshaft thread	1/4x28

Manuals
Note: These are archive copies of the originals

Fox 29 & 36 instructions and parts list

Fox 29 & 36 instructions - later version

Replacement Parts
This is not complete and under construction. Check part numbers here

	29 UC	36 UC	29 RC	36 RC
crankcase	12901	13601	22901	23601
cylinder head	12902	13602	12902	13602
piston/cylinder	12902	13602	12902	13602
wrist pin	12906	13506	12906	13506
wrist pin snaps	13540	13540	13540	13540
connecting rod	13607	13607	13607	13607
crankshaft	12908	13608	12908	13608
prop driver	13509	13509	13509	13509
needle valve assy	14010	14010
rear cover	13611	13611	13611	13611
prop nut	13512	13512	13512	13512
prop washer	13513	13513	13513	13513
screw set	25f-3614	25f-3614	25f-3614	25f-3614
rear cover gasket	29f-3621	29f-3621	29f-3621	29f-3621
needle valve	14016	14016
carb venture small	13631	13631
exhaust valve			22575	22575
exhaust valve wire			23677	23677
carb complete			23650	23650
