FOX 36 RX Item number 23899

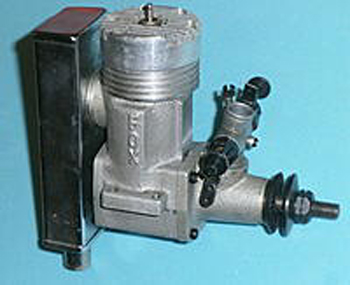

FOX 36 RX Still under construction   Anybody have any 3 view or exploded view drawings of this engine?   Specifications displacement   power PS / KW rpm 11,000 - 13,000 bore stroke   weight   porting   ball bearing   piston/cylinder Iron lapped cylinder Steel crankshaft thread 1/4"x28                               glow plug Std Long prop 11x4 11x5 10x6 9x7 9x8

Fox 36 RX Manual
Note: These are archive copies of the originals
Prices and some information is not up to date

Replacement Parts
This is not complete and under construction. If no part number link, we may not have the part yet.

Spare parts old part no. new part no. Crankcase 23801 10f-3801 Front housing 23801-a 31f-3801 Cylinder head 23802 11f-3802 Cylinder head button 23843 11f-3843 Cylinder liner 23803 12f-3803 Piston 23804 13f-3804 Piston Ring 23818 14f-3818 Wrist pin 23806 15f-3806 Connecting rod 23807 16f-3807 Crankshaft 23808 17f-3808 Rear cover 23611 ? 21f-3811 Prop driver 13509 20f-3509 Prop washer 13513 23f-3513 Prop nut 13512 24f-3512 Gasket set 23614 29f-3801 Screw set 25f-3801 Wrist pin snap rings 14040 Front Housing 23801-a 31f-3831 Muffler 23822 30f-3822   Carburetor complete 23650 Carb body 23660 Carb barrel 23661 Idle stop screw and spring 23662 Low speed needle 23663 High speed needle 23665 Throttle arm 23666 Ratchet spring 23668 1/4"x32 thin nut 26070   U/C Needle/Spray Bar Assy 87f- U/C Needle Valve 85f-

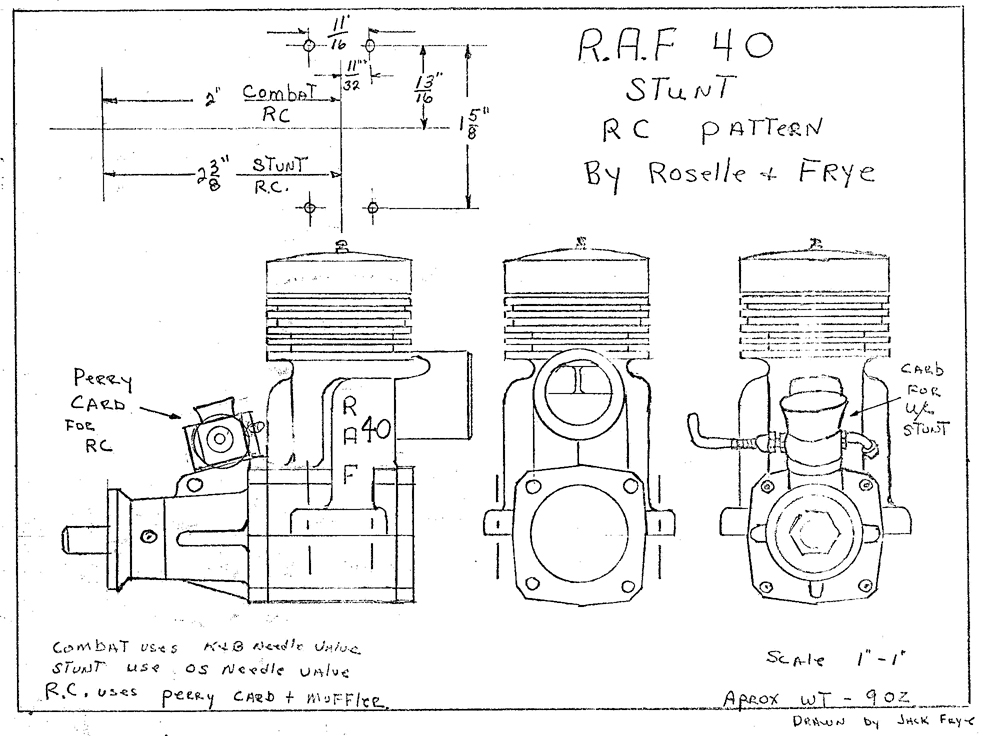

A little history, as Duke told me. He hired Jack Frye to develop this engine. After taking too much time, Duke took the project and finished it as the FOX 36 RX We found the tooling for a 60 size version but no castings.
