FOX EAGLE II & III
6-25-2022

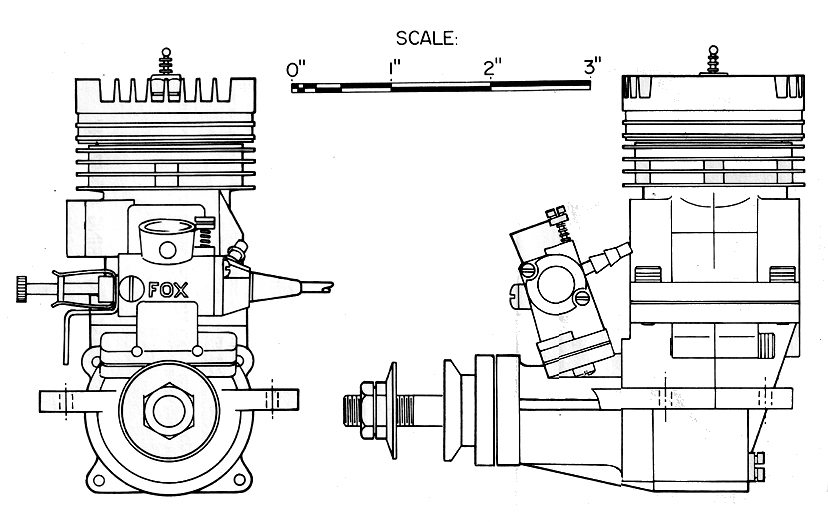

FOX EAGLE II & III

displacement .60 cu in
 Bore: .906
 Stroke: .937
 Weight 18 oz
RPM 13,000 with 11x7 prop
ball bearing
piston/cylinder ringed with steel liner
porting schneurle
crankshaft thread 5/16x24

Fox Eagle II & III have the notable split lower crankcase.

June 1981 Owners Guide

Replacement Parts
Some part numbers don't have links at time this page was updated
You can check here

If not listed, it's not available yet but probably will be eventually.



part no.

Crankcase, Front
26501
Crankcase, Rear
26211
Head Clamp
Head Button
26543
Cylinder Fin Casting
26525
Cylinder
Piston
Piston Ring
26418
Wrist Pin
26106
Wrist Pin Snaps
Connecting Rod
Prop Driver
Prop Drive Collet
Prop Nut
Prop Washer
Head Screws
26517
Cylinder Screws
26518
Case Shoulder Bolts
26219
Cylinder Gasket
Center Case Gasket
Carb Gasket & Screws
24075 Use Below
Carburetor Gasket
Carburetor Screws
Rear Bearing
27842
Front Bearing
Crankshaft
26508
Crankshaft Reverse
26528
Muffler Tilt Down
Muffler Tilt Up
Carb Complete
Mk X-D
26251
Carb Body
26260
Barrel
26261
Idle Stop screw & Spring
Low Speed Needle
24063
High Speed Needle
24064
Throttle Arm
Low Speed Ratchet
High Speed Ratchet
1/4-32 Carb nut
10-32 Carb Nut
Jet Assy with Screws
26371
Barrel Cam Screw
Carburetor Gasket
Carburetor Screws
