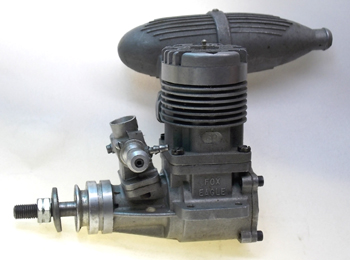

FOX Eagle IV
3-1-2020


  FOX Eagle IV


displacement .60 cu in
 Bore: .906" on 60 -- 1.000" on 74
 Stroke: .937" same on both
 Weight
 H.P.
ball bearing
piston/cylinder ringed with steel liner or ABC
porting schneurle
crankshaft thread 5/16x24

The FOX Eagle 4

Basically very similar to the Eagle II & III except for one piece case.

May 1994 Owners Guide

Replacement Parts
Some part numbers don't have links at time this page was updated
You can check here

If not listed, it's not available yet but probably will be eventually.

Eagle 4 Ringed
16600 & 26600
Eagle 4 ABC
26700
Eagle 4 ABC
For Pipe 26800
Eagle 74 Ringed
17400 &27400

Eagle 74 ABC
27500

Cylinder Fin Casting
26525
26525
26525
Piston Ring
25018
--
--
27418
--
Cylinder Head Button
27443
27443
Cylinder Liner

26005b

Sold as Set

26005p

Sold as Set

27403

27405b

Sold as Set

Piston
Wrist Pin
Wrist Pin Cir Clips
Connecting Rod

Parts below are the same for all models of Eagle 4

Crankcase
26601
Cylinder Head Clamp

Crankshaft
27408
Crankshaft Reverse Rotation
Prop Driver
Prop Drive Collet
Rear Cover
Prop Nut
Prop Washer
Rear Bearing
Front Bearing
26043


Muffler Tilt Down
Muffler Tilt Up
Screw and Gasket Set
26614
Carburetor Complete
27050b e-z
Carb Boby & Barrel
27059b
Idle Stop Screw or
Air Bleed Screw
High Speed Needle
27064
Throttle Arm Screw/lock washer
27065
Throttle Arm
Ratchet Spring
24067
6-40 Knurled Nut
Barrel Cam Screw
Fuel Inlet Nipple
Main Jet mounting Screws
Mounting Screws & Gasket
24075
