FOX Falcon .60
Stunt
& R/C
This is not complete and under construction. Last page update 7-3-2025

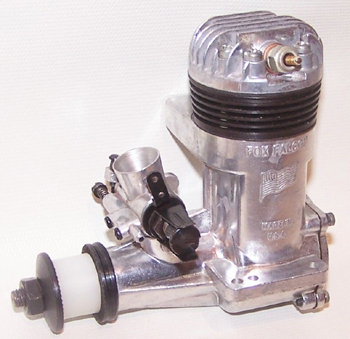

  FOX Falcon 60 Stunt & R/C
Model Numbers 16000 and 26000


Specifications

displacement .60 cu in
rpm 11,000
bore stroke
weight 12 oz
porting Loop
ball bearing Bushing
piston Ringed
cylinder Steel
crankshaft thread ¼ x 28
Accessory Items
glow plug
prop



Original Owners Manual and parts list
Note: Prices and contact information not correct



Replacement Parts
This is not complete and under construction.

spare parts

new
part no.

old
part no.

Crankcase R/C
10F-5901
25901
Cramkcase CL
15901
Cylinder Head
11f-5902
15902
rear cover
21f-5911
15911
piston
13f-5904
15904
Cylinder
15903
Ring
connecting rod
15907
wrist pin
15f-5906
15906
wrist pin snap rings
15940
crankshaft
17f-5908
15908
back cover gasket
prop driver*
13509
prop washer**
prop nut***
13512
screw & gasket set
15914
set of gaskets
29f-5901
screw set
25f-5901


*Fox numbers are screwed up on this. They called out the .35 prop driver but that's wrong and they changed the part without changing the part numbers. The Falcon always had a black driver and is the same as the 36x

**This has the wrong plating, originally was black oxide, but why change the PN for a different color. It's slightly smaller then what came on the Falcon originally.

***From the new sample engines I have, the K&B's used the same black nut. Fox machined nuts from bar stock with a groove around the hex, but none of my samples had these.



Still working on the carb parts as FOX's numbers are all screwed up.
Carb Complete
25950
Venturi Small
15931
Venturi Large
15932
Carb Body
25960
Barrel
25961
Barrel stop screw and spring
25962
Low Speed Needle
25963
High Speed Needle
25964
Idle stop arm
25965
Throttle lever
25966
Ratchet Spring
25968
Spacer
25969
¼-32 Nuts
25970
